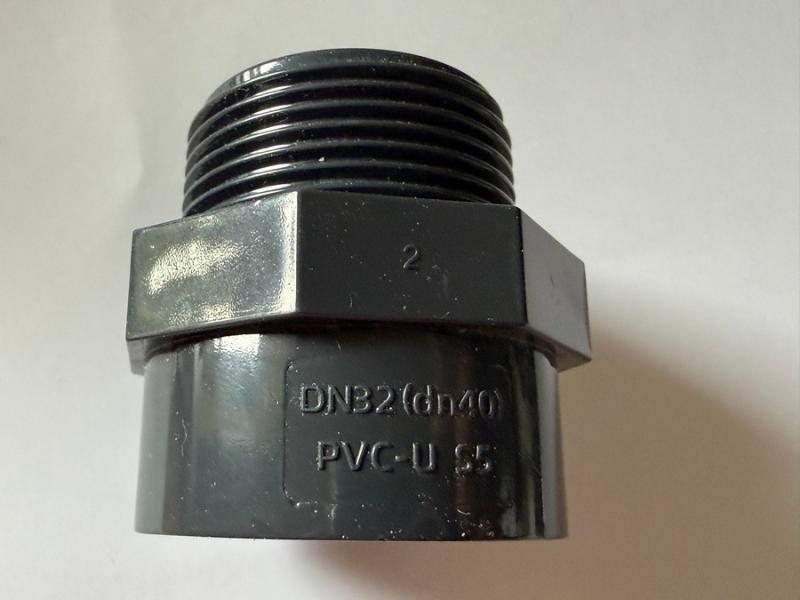

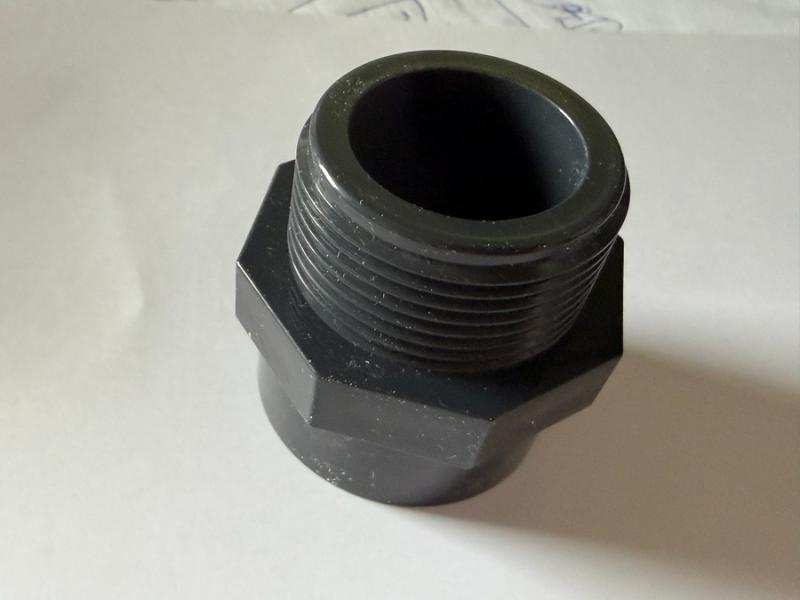

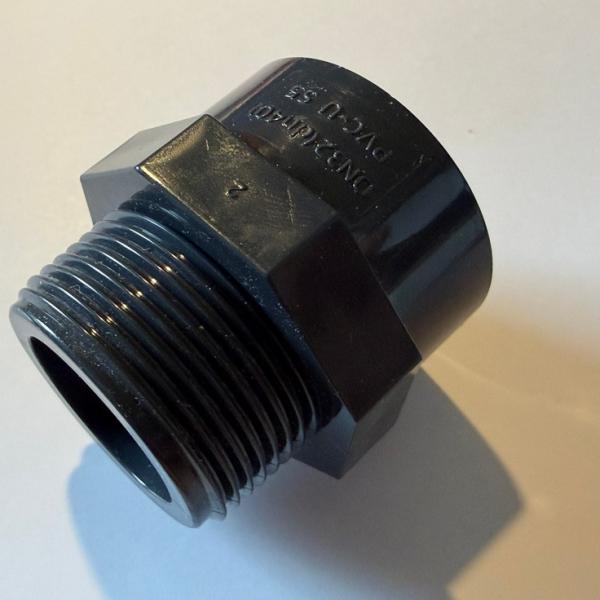

PVC-U Male Adapter 40 mm × 1 1/4" Male BSP Thread

Popis

PVC-U male adapter designed to connect a 40 mm solvent-weld pipe to a 1 1/4" male BSP threaded connection. Suitable for connecting PVC pipes or flexible hoses to equipment with a 1 1/4" female thread, such as pool pumps, filters, valves, and other water treatment equipment.

Before bonding, thoroughly clean both surfaces using a PVC cleaner (e.g. Tangit or Griffon). Apply an even layer of PVC solvent cement and immediately join the parts. Do not move the joint for at least 5 minutes. Full curing is achieved after approximately 10–12 hours.

Specifications

Connection: 40 mm solvent socket × 1 1/4" male BSP thread
Type: Male adapter
Material: PVC-U (unplasticized PVC)
Installation: Solvent welding + threaded connection
Application: Swimming pool plumbing, pressure PVC systems, irrigation and water treatment installations
