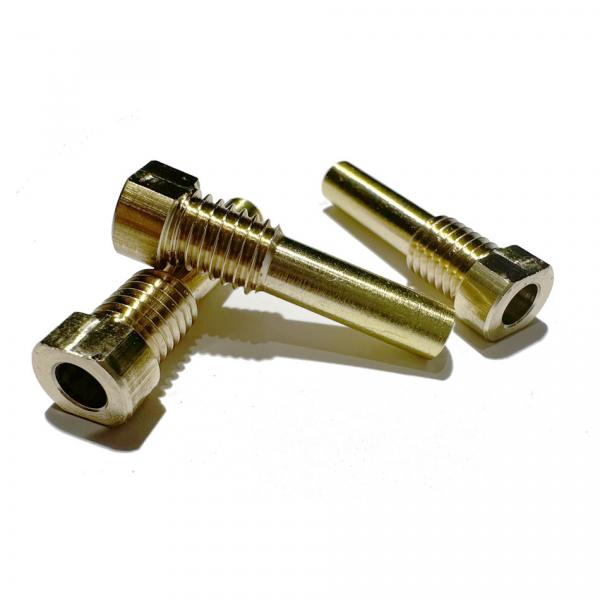

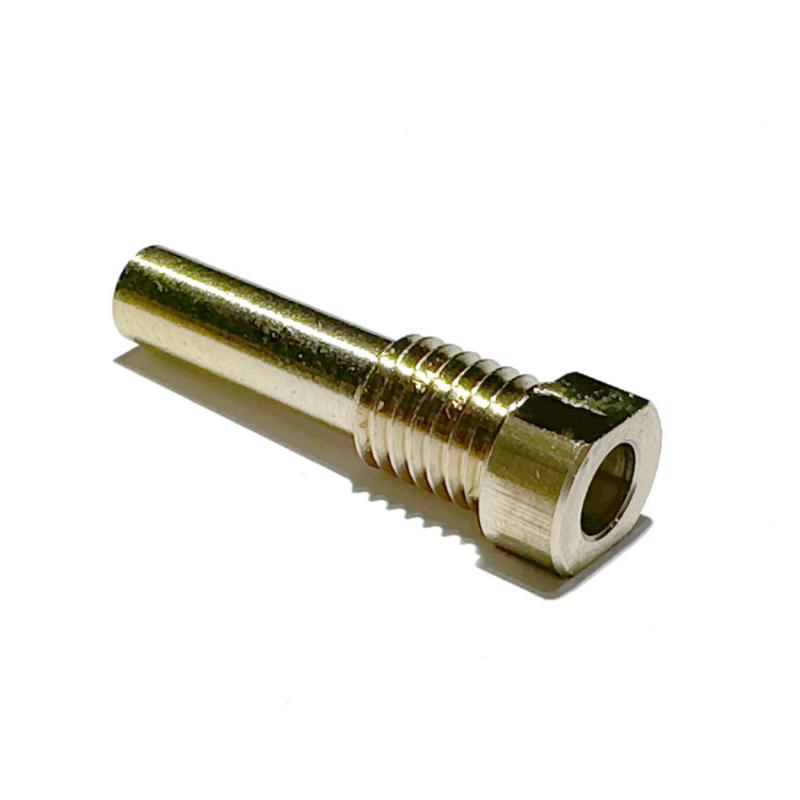

Sensor well for 5mm temperature probe
Brass well for 25×5mm thermistor sensor for measuring water flow temperature
21.10.2026
Stay informed. If you are interested in this product, set up alerts for updates and availability.
Popis

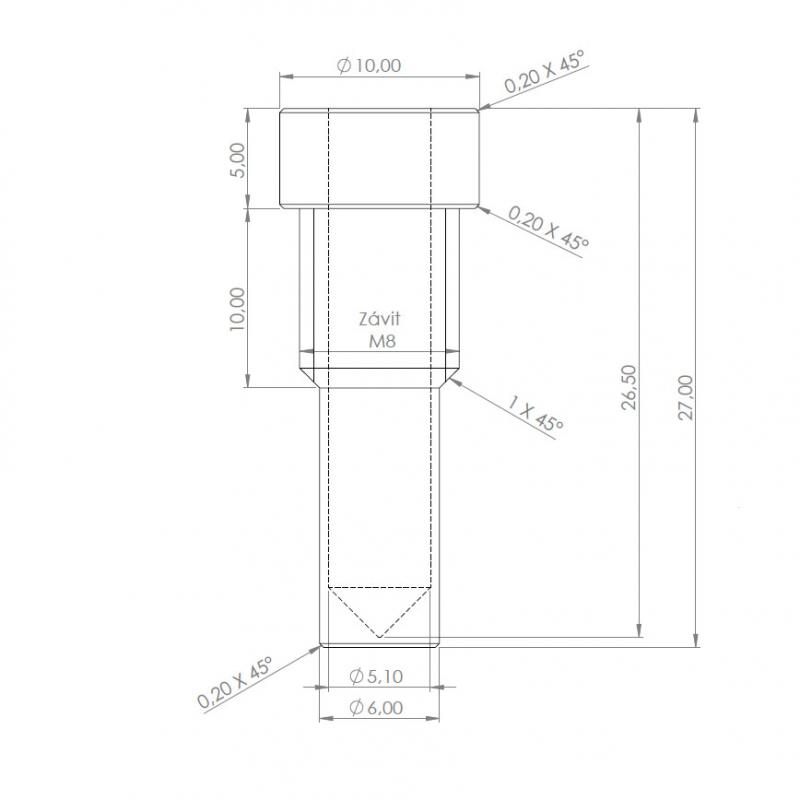

The thermowell is made of brass alloy and has a length of 35mm, an internal diameter of 5.1mm (designed for thermistor (NTC) temperature sensors with a diameter of 5mm), and an M8x1.25 thread. Suitable for installation at various points in the piping system, such as elbows, adapters, and other fittings. Seal the threaded connection using PTFE sealing cord or LOCTITE SI 5331 thread sealant.
Technical specifications:
- Material: Brass
- Length: 35mm
- External thread: M8x1.25
- Wrench size: 8mm
- Internal diameter: 5.1mm
- Suitable for sensors with a diameter of up to 5.1mm
- Maximum temperature: 250°C
- Maximum pressure: 2 MPa
- Designed for thermistor (NTC) sensors with a diameter of 5mm and a length of 25mm
- Without sensor fixing mechanism
- Package contents: 1 thermowell
- The actual color of the product may differ slightly from the images shown on the website due to factors such as monitor brightness and lighting conditions.
Documents to download
Nothing to download, the product does not require documentation.
