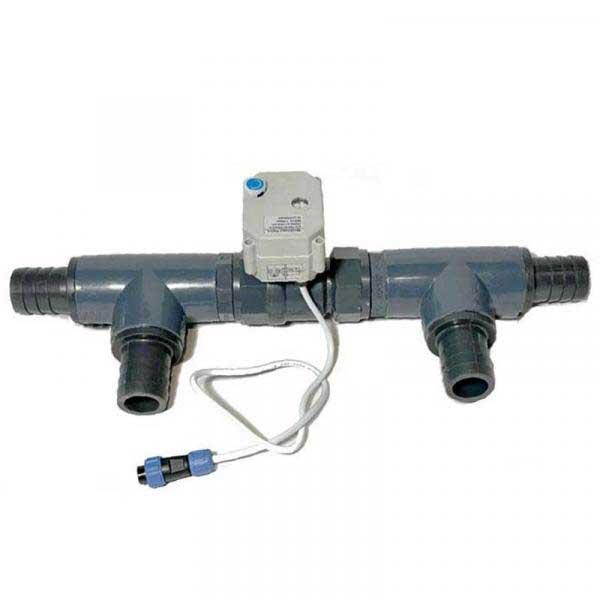

Complete Filtration Bypass Set 32 mm

Popis

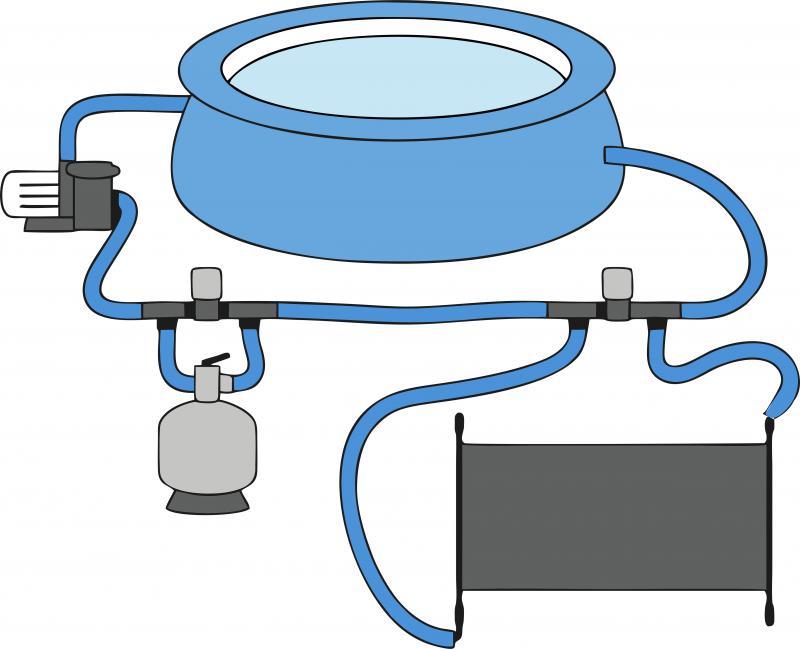

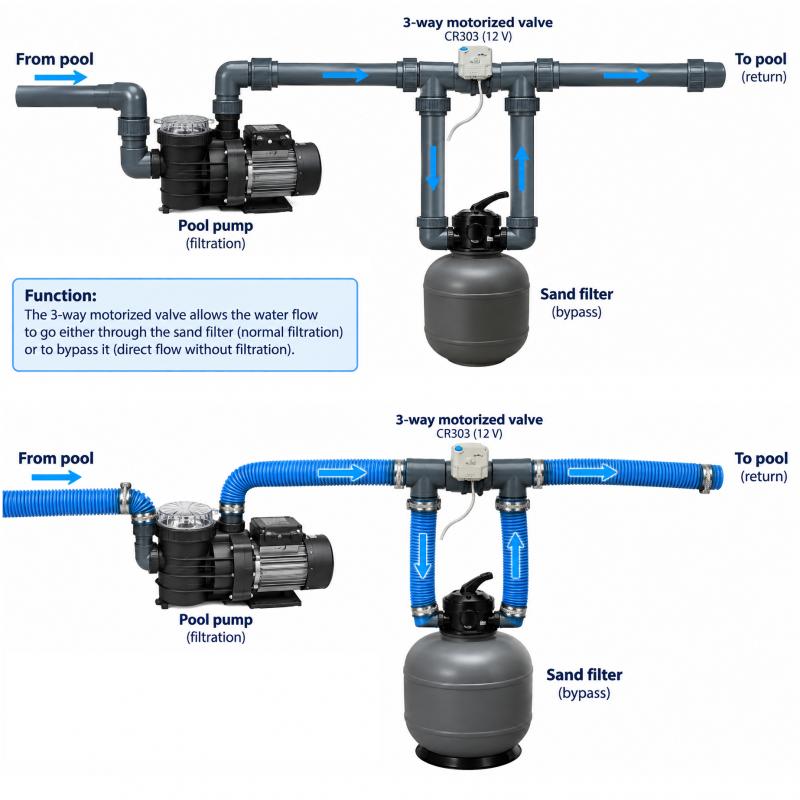

These components are required to assemble a FILTRATION bypass circuit.
The fittings are equipped with 32 mm hose barbs and a 1¼" threaded connection.

Package contents

2× Universal T-piece with 32 mm hose barbs and 1¼" thread for a motorized valve
1× Motorized valve A-20-T32-P2-CR303-B, AC/DC 9–24V, 500mA, 1.0 MPa
1× PTFE sealing tape for threaded connections

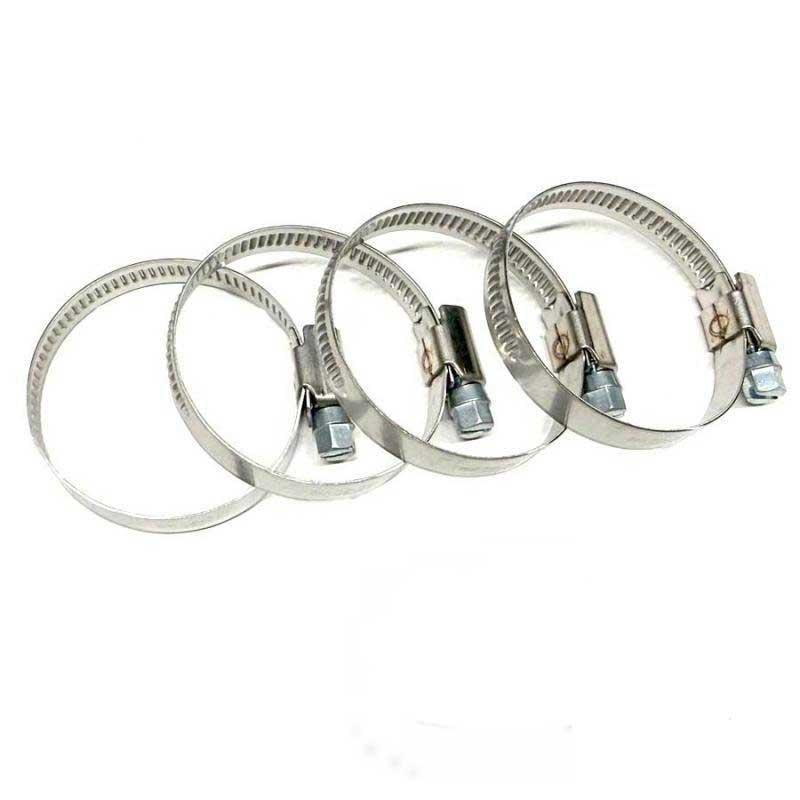

4× Stainless steel hose clamps 32–50 mm

Supplied unassembled.

Assembly instructions

Wrap 15–20 turns of PTFE tape clockwise around the threads and screw the valve into the desired position according to your installation requirements.
